update.txt - FW update

What is it used for?

info

On the power on and boot the firmware checks /net/rcc/mnt/efs-persist/update.txtand if it is not found then /net/rcc/mnt/efs-persist/update.txt.backup file.

If it exists, the normal boot sequence is stopped and SWDL mode is run to complete updates listed in this file.

tip

In case you want to stop a failing FW update you can delete it with

rm /net/rcc/mnt/efs-persist/update.*

Checking the content of update.txt, helps to identify why a [Audi TT FW update](/MHI2 MHI2Q Harman Aisin/Recovery/Conversion & Cross-flashing/unsorted - testing only/AUDI TT - stuck on blue EFU during FW update/) failed on the mid way from a very old FW to the latest.
You can manually generate or modify an update.txt to trigger:
1. A custom FW update on demand and with specific tasks.
2. A FW update on bench, without a screen connected to system.

Editing/generation of a custom `update.txt`

warning

The basics to edit an update.txt will be presented below.

However, this is very likely not complete yet. Feel free to test and add missing knowledge!

As an EXAMPLE, let us use this update.txt:

CRC = 4ff4205f
MetafileCRC = 9e12c2936b019a6d165cd3586105b85bc85bff2d
initiator = HMI
train = MHI2_ER_AU43x_S1074_1
variant = FM2-H-N-EU-AU-MQT
MUversion = 0884
RCCversion = U8228
AssemblyID = 0
ReleaseName = MHI2_ER_AU43x_P5098
startTime = 2021-10-07 14:09
LogSubDir = /HBpersistence/SWDL/Log/service/2
TransactionImageAddress = 0x540000
TransactionImageSize = 0x15a0530
Source = SD1
Path = /
ReleasePath =
Phase3Device = IOC
Phase3Device = MuINIC
[AMP16_APN\0\AMP16_APPL\6\default\bootloader]=NO;240;default;240
[AMP16_APN\0\AMP16_APPL\6\default\application]=NO;240;default;240
[FPK\0\gss-qb-recovery\35\default\bootloader]=NO;0;default;0
[FPK\0\gss-qb-recovery\35\default\application]=NO;126;default;126
[FPK\0\gss-stage1-recovery\35\default\bootloader]=NO;0;default;0
[FPK\0\gss-stage1-recovery\35\default\application]=NO;406;default;406
[FPK\0\gss-qb-primary\35\default\bootloader]=NO;0;default;0
[FPK\0\gss-qb-primary\35\default\application]=NO;126;default;126
[FPK\0\gss-stage2\35\default\bootloader]=NO;0;default;0
[FPK\0\gss-stage2\35\default\application]=NO;406;default;406
[FPK\0\gss-stage2-nand\35\default\bootloader]=NO;0;default;0
[FPK\0\gss-stage2-nand\35\default\application]=NO;406;default;406
[FPK\0\gss-stage3\35\default\bootloader]=NO;0;default;0
[FPK\0\gss-stage3\35\default\application]=NO;406;default;406
[FPK\0\gss-applications\35\default\bootloader]=NO;0;default;0
[FPK\0\gss-applications\35\default\application]=NO;406;default;406
[FPK\0\gss-stage1\35\default\bootloader]=NO;0;default;0
[FPK\0\gss-stage1\35\default\application]=NO;406;default;406
[FPK\0\gss-versioninfo\35\default\bootloader]=NO;0;default;0
[FPK\0\gss-versioninfo\35\default\application]=NO;601;default;601
[FPK\0\kss-flashdriver\35\default\bootloader]=NO;0;default;0
[FPK\0\kss-flashdriver\35\default\application]=NO;600;default;600
[FPK\0\kss-application\35\default\bootloader]=NO;0;default;0
[FPK\0\kss-application\35\default\application]=NO;600;default;600
[FPK\0\gss-inic\2\default\bootloader]=NO;0;default;0
[FPK\0\gss-inic\2\default\application]=NO;65536;default;65536
[RCC\0\ifs-emg\32\default\bootloader]=NO;0;default;0
[RCC\0\ifs-emg\32\default\application]=DONE;941;default;953
[RCC\0\ifs-root\32\default\bootloader]=NO;0;default;0
[RCC\0\ifs-root\32\default\application]=TODO;8734;default;9558
[RCC\0\efs-system\32\default\bootloader]=NO;0;default;0
[RCC\0\efs-system\32\default\application]=TODO;7566;default;8388
[RCC\0\dsp\32\default\bootloader]=NO;0;default;0
[RCC\0\dsp\32\default\application]=TODO;571811866;default;672601178
[Tuner\0\E2P\32\default\bootloader]=NO;0;default;0
[Tuner\0\E2P\32\default\application]=DONE;19005440;default;25755648
[IOC\0\Main\32\default\bootloader]=TODO;205;default;211
[IOC\0\Main\32\default\application]=TODO;5304;default;9264
[MuINIC\0\Main\32\default\bootloader]=NO;0;default;0
[MuINIC\0\Main\32\default\application]=NO;16909592;default;16909592
[FC1H33xE\0\FCB\22\default\bootloader]=NO;0;default;0
[FC1H33xE\0\FCB\22\default\application]=DONE;73;default;85
[FC1H33xE\0\FCP\22\default\bootloader]=NO;0;default;0
[FC1H33xE\0\FCP\22\default\application]=DONE;121;default;176
[FC1H33xE\0\FCR\22\default\bootloader]=NO;0;default;0
[FC1H33xE\0\FCR\22\default\application]=DONE;9;default;10
[FC1H33xE\0\HREU\22\default\bootloader]=NO;0;default;0
[FC1H33xE\0\HREU\22\default\application]=NO;12;default;12
[GPS\0\Main\32\default\bootloader]=NO;0;default;0
[GPS\0\Main\32\default\application]=NO;603;default;603
[MMX2\0\qb-recovery\73\default\bootloader]=NO;0;default;0
[MMX2\0\qb-recovery\73\default\application]=DONE;111;default;202
[MMX2\0\qb-primary\73\default\bootloader]=NO;0;default;0
[MMX2\0\qb-primary\73\default\application]=DONE;111;default;202
[MMX2\0\eifs\73\default\bootloader]=NO;0;default;0
[MMX2\0\eifs\73\default\application]=DONE;1380;default;2690
[MMX2\0\mifs-stage2\73\default\bootloader]=NO;0;default;0
[MMX2\0\mifs-stage2\73\default\application]=DONE;1380;default;2690
[MMX2\0\efs-sys\73\default\bootloader]=NO;0;default;0
[MMX2\0\efs-sys\73\default\application]=DONE;1380;default;2690
[MMX2\0\app\73\default\bootloader]=NO;0;default;0
[MMX2\0\app\73\default\application]=DONE;1380;default;2690
[MMX2\0\mifs-stage1\73\default\bootloader]=NO;0;default;0
[MMX2\0\mifs-stage1\73\default\application]=DONE;1380;default;2690
[MMX2\0\efs-pers\73\default\bootloader]=NO;0;default;0
[MMX2\0\efs-pers\73\default\application]=NO;2;default;2
[DVD\0\Main\48\default\bootloader]=NO;0;default;0
[DVD\0\Main\48\default\application]=NO;32;default;32
[SpeechAppRes\0\speech-common-data\0\default\Dir]=TODO;5349;default;5706;MMX
[SpeechAppRes\0\speech-tts-app-data-vg\0\default\Dir]=TODO;5349;default;5706;MMX
[SpeechAppRes\0\speech-sr-data\0\default\Dir]=TODO;5349;default;5706;MMX
[SpeechRes\0\speech-tts-data_EU\0\default\Dir]=TODO;6090;default;7776;MMX
[SpeechRes\0\speech-tts-data_ROW\0\default\Dir]=TODO;6090;default;7776;MMX
[SpeechRes\0\speech-tts-voices\0\default\Dir]=TODO;6090;default;7776;MMX
[MuTnrRef\0\data\0\default\File]=DONE;494;default;190
[MUConsistency\0\Data\0\default\File]=DONE;884;default;1339
{RCC\Post}=TODO;
{RCC\Pre}=DONE;
{Final}=TODO;

tip

update.txt will be accepted by the SWDL only if CRC = and MetafileCRC = contain correct values. Otherwise update.txt will be renamed to update.txt.Cancelled

CRC = is the CRC32 of all update.txt lines WITHOUT the CRC line (including \n) - in this example: `CRC = 4ff4205f`

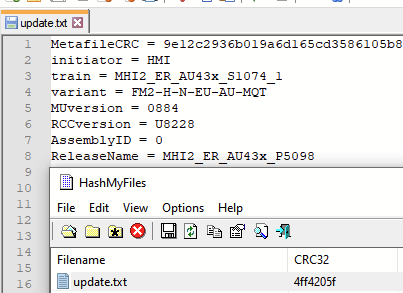

CRC line removed

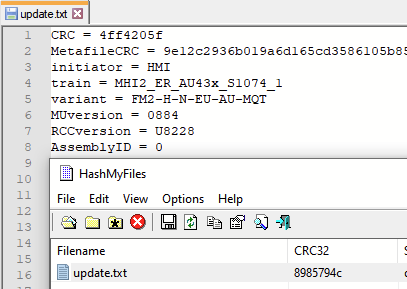

If you calculate CRC32 of theupdate.txtwith the CRC line, SWDL will consider the file as damaged: CRC32 of update.txt does not fit

MetafileCRC = contains SHA1 value of `MetafileChecksum` from `metainfo2.txt`.

SWDL will check if this value matches `MetafileChecksum` value in `metainfo2.txt`.

Example from FW MHI2_ER_AU43x_P5098

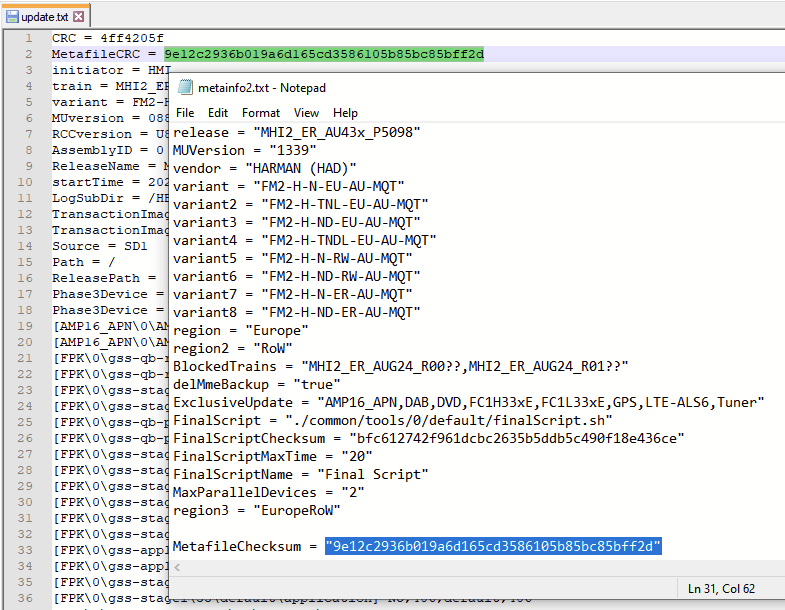

SHA1 hash matches

info

MetafileChecksum = inside of the metainfo2.txt is SHA1 hash of the metainfo2.txtwithout removed MetafileChecksum = line.

MetafileCRC = skip

tip

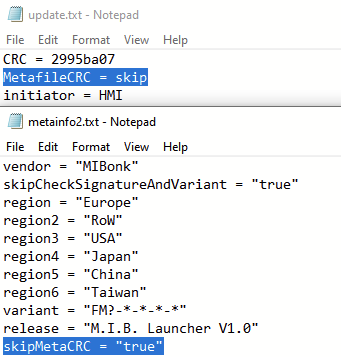

If you removed MetafileChecksum from metainfo.txt and used skipMetaCRC = "true" instead, then you must set MetafileCRC = skip in update.txt

info

To calculate CRC32 hash for CRC and SHA1 hash for MetafileCRChashes, use HashMyFiles or something similar

Update packages

To quickly see how much packages are remaining to be installed, check with:

tip

cat /net/rcc/mnt/efs-persist/update.txt | grep TODO

Lines may look like:

[RCC\0\ifs-root\32\default\application]=TODO;8734;default;9558

Let's break down the line contend:

[RCC\0\ifs-root\32\default\application - similar to the line in metainfo2.txt with adding a device number]===Status (see below)==;version of the module in unit;default(unknown)target version on SD/USB card update

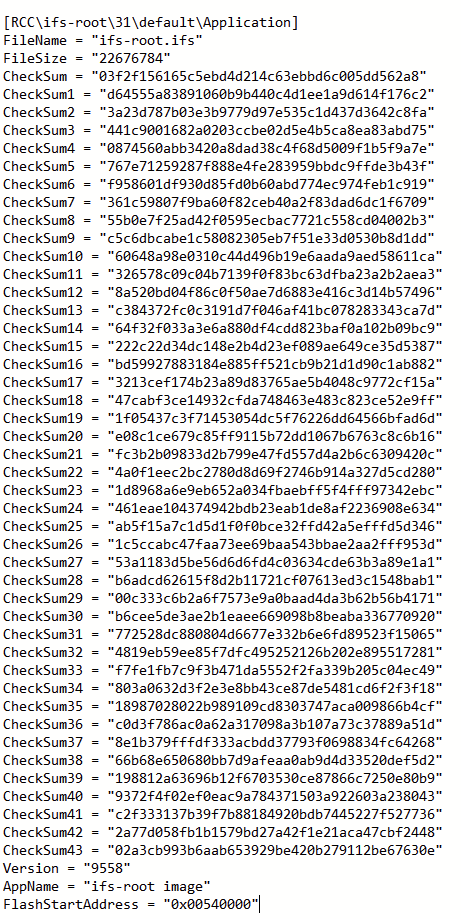

section from metainfo2.txt for MHI2_ER_AU43x_P5098

Status: NO/TODO/DONE

Status	Meaning
NO	nothing to be done to this package
TODO	still open and has to be finished by FW update process
DONE	finished by FW update process

Based on the example above, these other lines also play a role in update.txt

Not all are required for a custom build update.txt

Not all are used by the different types of FW updates, like map updates, POI, …

Line	Description	mandatory
initiator = HMI	which module created the file	?
train = MHI2_ER_AU43x_S1074_1	train of FW at start of update	?
variant = FM2-H-N-EU-AU-MQT		?
MUversion = 0884	MU version of original FW at start of update	?
RCCversion = U8228		?
AssemblyID = 0		?
ReleaseName = MHI2_ER_AU43x_P5098	Pulled from metainfo2.txt \n	?
startTime = 2021-10-07 14:09		?
LogSubDir = /HBpersistence/SWDL/Log/service/2	storage location on unit on RCC for Log of this update	?
TransactionImageAddress = 0x540000	RCC hex start address of ifs-root image	?
TransactionImageSize = 0x15a0530		?
Source = SD1		?
Path = /		?
ReleasePath =		?
Phase3Device = IOC		?
Phase3Device = MuINIC		?
{RCC\Post}=TODO;		?
{RCC\Pre}=DONE;		?
{Final}=TODO;	Status of FinalScript in metainfo2.txt \n	?
Feel free to add more here!
